model: 52CVR102
10" CompVR 2 Ohm
The CompVR 10-Inch Subwoofer is a 2Ω dual voice coil design, built for easy wiring.
The reengineered CompVR gets earth-shattering bass to you by engineering a stable base and a cool, powerful motor. Powerful magnets and dual high-temp voice coils move a stiff polypropylene cone, while perimeter venting keeps the air moving around the motor. You get strong bass that keeps on bumping day in – day out.
The CompVR Subwoofer works best with a sealed or ported enclosure for its substantial power handling.
| Product Dimension Sheet |
| 52CVR10 Dimensions |
| SIZE [in, cm]: |
| 10, 25 |
| IMPEDANCE [Ohms]: |
| 2 DVC |

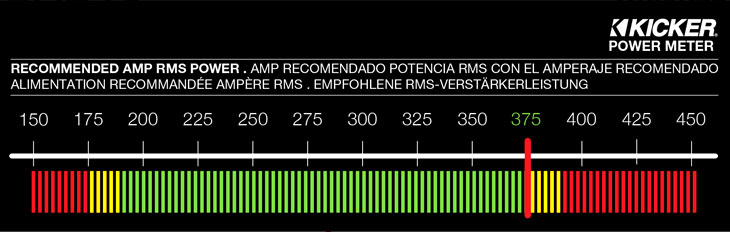

| Recommended Amplifier Power (watts RMS) |
| 180-375 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 750 |
| SENSITIVITY [dB 1w/1m]: |
| 83.6 |
| MOUNTING DEPTH [in, cm]: |
| 5-1/2, 14 |
| MOUNTING DIAMETER [in, cm]: |
| 9-3/16, 23.3 |
| MIN SEALED BOX VOL [cu. ft, L]: |
| 0.8, 22.7 |
| MAX SEALED BOX VOL [cu. ft, L]: |
| 3, 85 |
| MIN VENTED BOX VOL [cu. ft, L]: |
| 1.25, 35.4 |
| MAX VENTED BOX VOL [cu. ft, L]: |
| 1.75, 49.6 |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here. |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual development, product and specifications are subject to change without notice. Stillwater Designs and its agents are not responsible for typographical errors.
